InBody 770S Professional Body Composition Analyzer

InBody 770S

Latest Non-Invasive Technology for Health, Sports, Fitness and Wellness.



InBody 770S is the Gold Standard Body Composition Analyzer using BIA technology with a 98.4% accuracy as validated by DEXA, the Gold Standard for X-ray measurement method. Over 5,500 Research studies have been conducted worldwide on the accuracy and co-relation of results.

Non-invasive measurement in 30 seconds to determine 12 Biomarkers which can indicate chronic diseases:

  1. Visceral Fat Area – indicator of high risk for type 2 diabetes and heart disease
  2. Percentage Body Fat  — indicator of healthiness or degree of obesity
  3. Waist Hip Ratio – indicator of waist circumference relative to hip circumference or obesity degree
  4. Whole Body Cell Phase Angle  — indicator of body cellular immunity level with good or risk or critical unhealthy
  5. Skeletal Muscle Mass  —  indicator of Sarcopenia by muscle loss
  6. Weight Control  — indicator of muscles or fats to gain or lose to remain healthy
  7. ECW Ratio Analysis  — indicator of edema (water retention) or dehydration ( stroke risk)
  8. Bone Mineral Content – indicator of osteoporosis or bone fracture risk
  9. Basal Metabolic Rate  — indicator of calories burnt by the body at rest in order to estimate food calories intake
  10. InBody Score – indicator of physical health – high score with high muscle mass
  11. Segmental Lean Analysis  — indicator of arms, trunk and legs muscle mass to determine right or left handed extremities
  12. Segmental Fat Analysis  — indicator of arms, trunk and legs fat mass

Click here to get the full poster :       InBody770S Poster 2025

Click here for the Product Brochure : InBody 770S Product Brochure

The SMF-BIA (Simultaneous Multi-Frequency Bioelectrical Impedance Analysis) implemented in this equipment ensures high measurement accuracy as compared to older technologies where just a small change in body composition and water distribution in the body can lead to inaccurate measurements.

DSM-BIA (Direct Segmental Measurement Bioelectrical Impedance Analysis) is a patented technology used to measure the body precisely as 5 separate cylinders: 4 limbs and a trunk

Individuals with imbalanced body water can benefit from this as their body water can be accurately measured. Multi-frequencies are used to analyze the intracellular and extracellular water, this is possible as the frequencies penetrates cell membrane.

8-point tactile electrodes allows repeated measurements to begin at a fixed point regardless of where the electrodes are placed. This increases the accuracy and reproducibility of the measurement.

Access 130+ Health Data in 30 seconds in three different Result Sheets :  Body Composition, Body Water and an exclusive Result Sheet for Children (see images below) ; all customizable with your preferred parameters.

The results can be stored on the cloud for easy access (including history) via a Mobile Application or on a local database for integration with EMR.

Applications for The InBody 770S include the fields of  Nutrition, Endocrinology, Cardiology, Rehabilitation, Geriatrics and others.

Specifications :

Dimensions: 526 (W) x 854(L) x 1175(H): mm  ⌈20.7(W) x 33.6(L) x 46.3(H): inch ⌋

Equipment Weight: 35.7 kg

 Testing Weight Range: 2 ~270 kg

Height Range: 95~220 cm (3′  1.4″ ~ 7′  2.6″)

Measurement Time : About 30 seconds

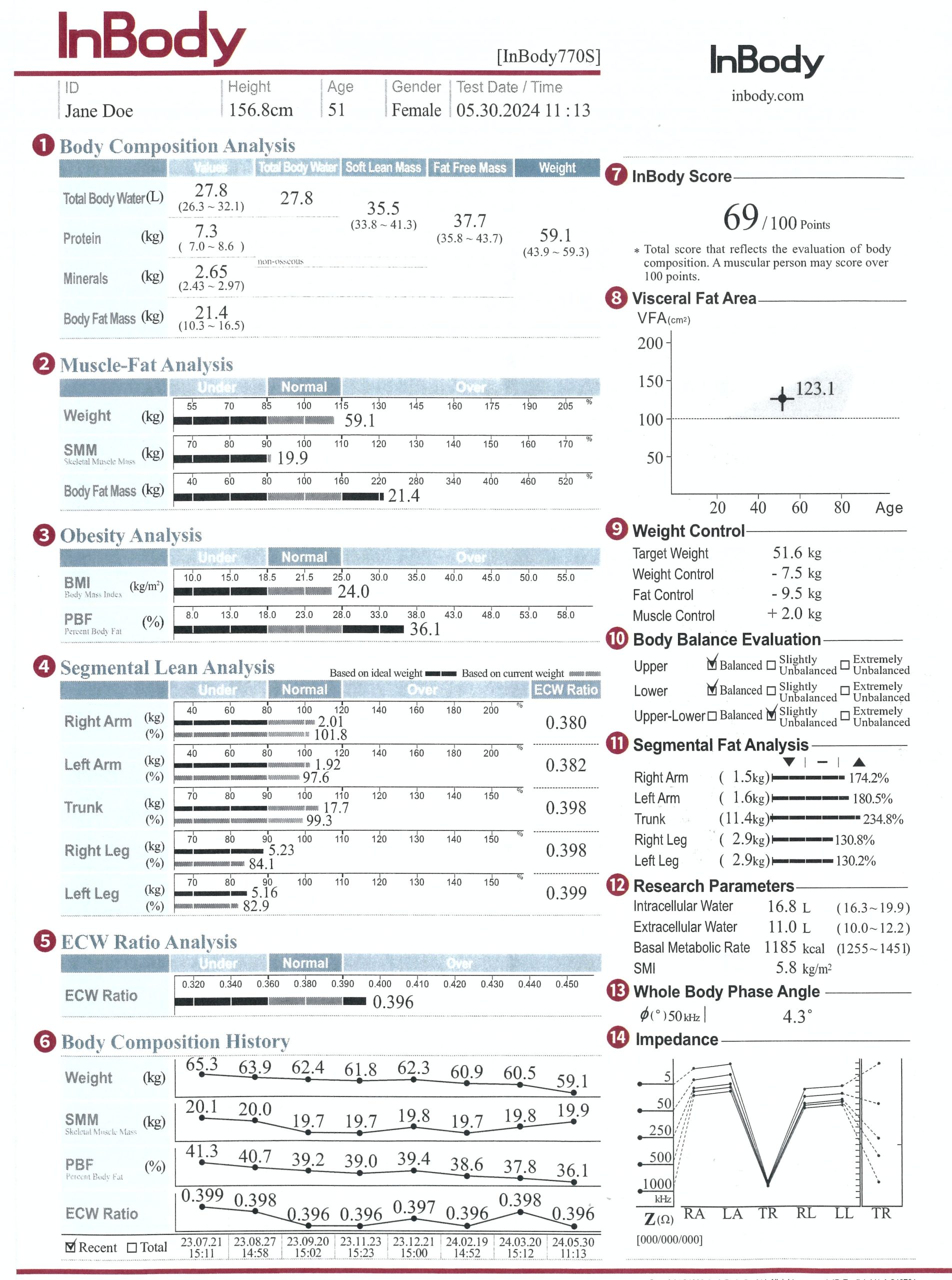

Fig 1. Body Composition Result Sheet for Adults

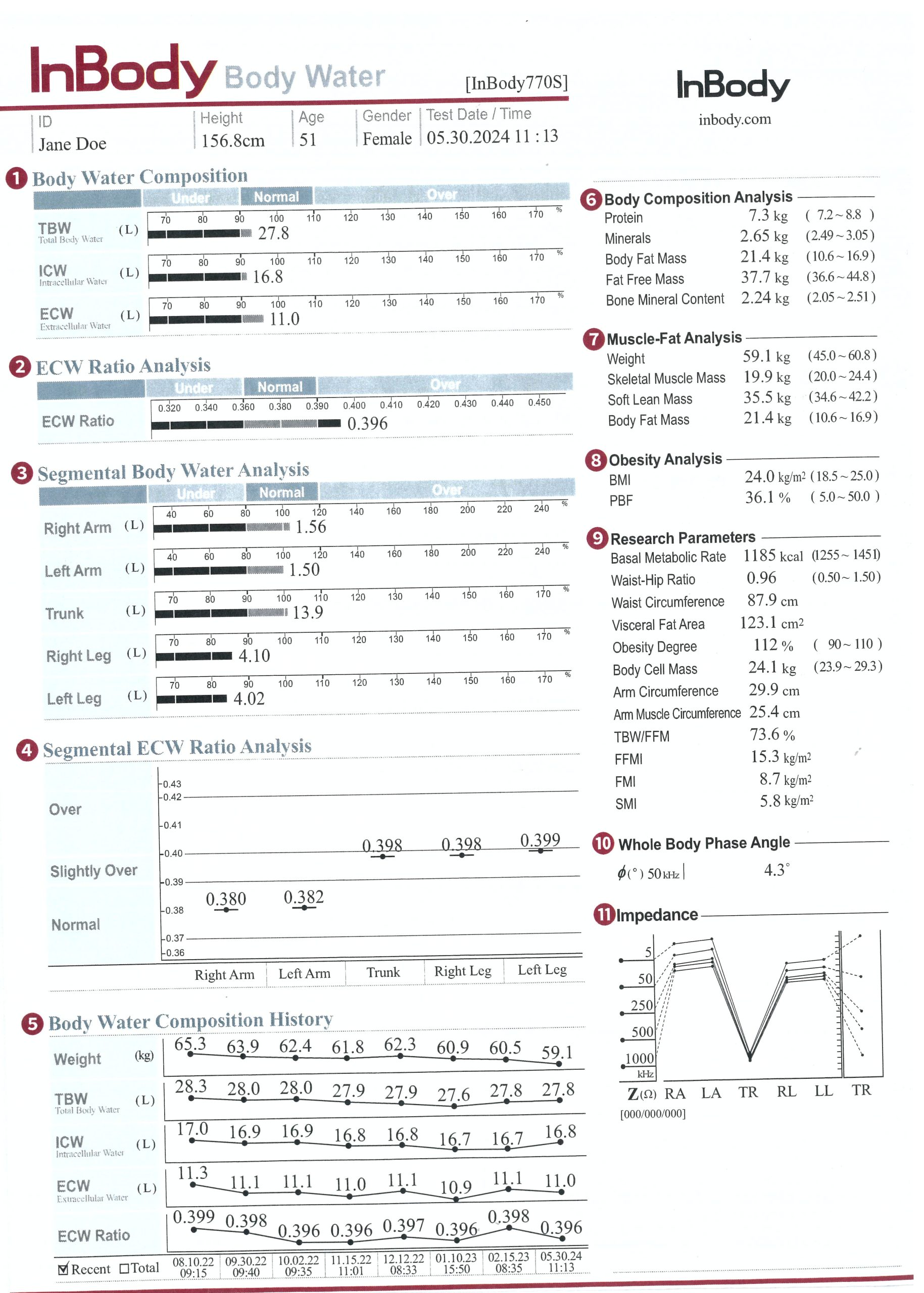

Fig 2. Body Water Result Sheet for Adults

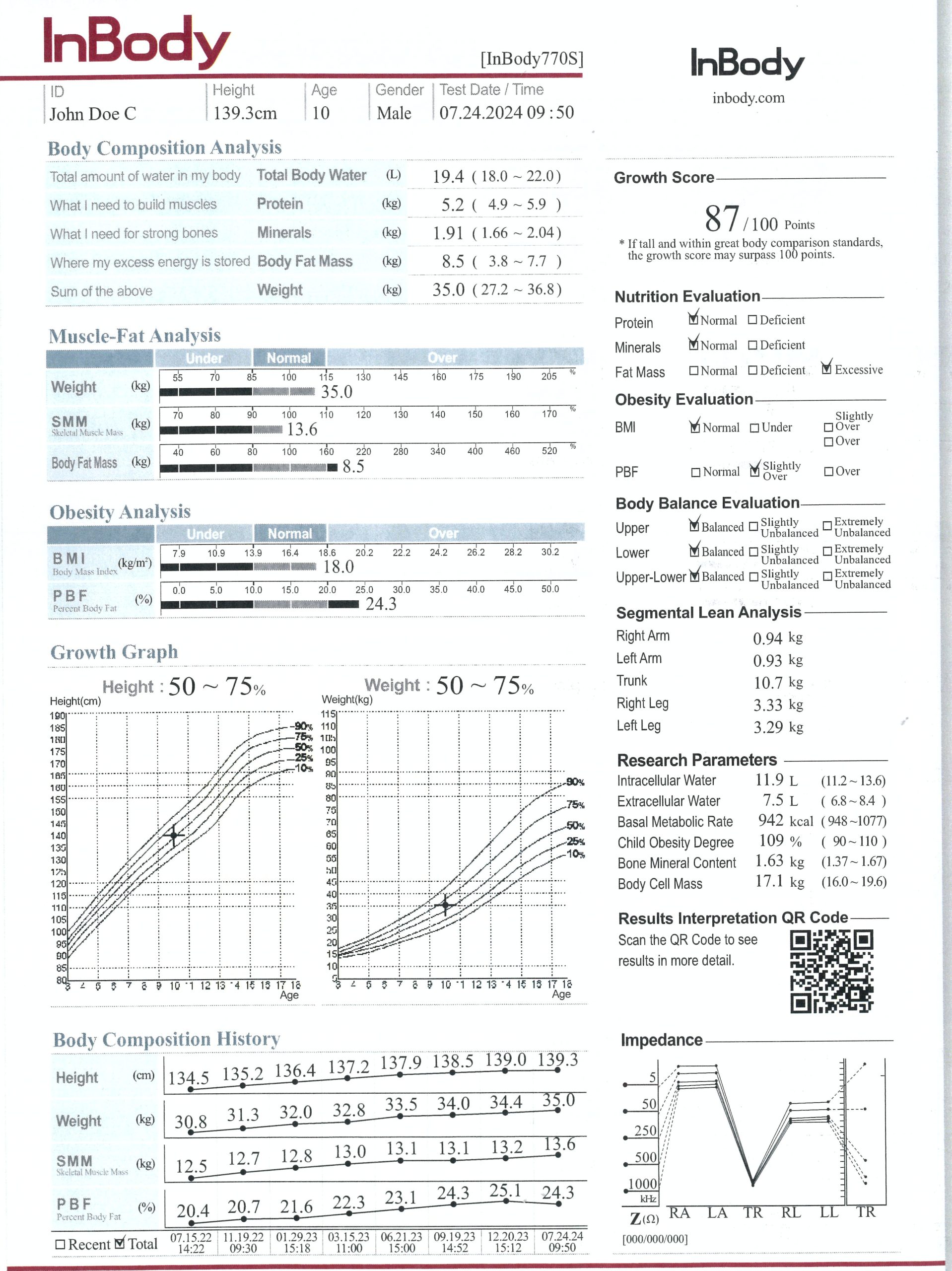

Fig 3. Result Sheet for Children
